Anritsu MS2725C Spectrum Master
Description of Anritsu MS2725C Spectrum Master
-
Measure: Occupied Bandwidth, Channel Power, ACPR, C/I, Emission Masks
-
Interference Analyzer: Spectrogram, Signal Strength, RSSI, Mapping
-
Dynamic Range: > 104 dB in 1 Hz RBW
-
DANL: –160 dBm in 1 Hz RBW @ 1 GHz preamp On
-
Phase Noise: –100 dBc/Hz @ 10 kHz offset at 1 GHz
-
Frequency Accuracy: ± 25 ppb with GPS On
-
1 Hz to 10 MHz Resolution Bandwidth (RBW)
-
Traces: Normal, Max Hold, Min Hold, Average, # of Averages
-
Detectors: Peak, Negative, Sample, Quasi-peak, and true RMS
-
Markers: 6, each with a Delta Marker, or 1 Reference with 6 Deltas
-
Limit Lines: up to 40 segments with one-button envelope creation
-
Trace Save-on-Event: crossing limit line or sweep complete
-
Sweep Modes: Fast, Performance, No FFT, burst detect
Specifications & Attributes of Anritsu MS2725C Spectrum Master
| Form Factor |
| Benchtop |
| Portable |
| Application Software |
| Noise Figure |
| Phase Noise |
List of Options of Anritsu MS2725C Spectrum Master
| 08 | Pre-Amplifier |
| 2000-1528-R | GPS Antenna, SAM (m) w/15ft cable requires 5Vdc |
| 25 | Interference Analyzer |
| 31 | GPS Receiver |
Our service:
1.One-stop service from manufacture to shipping.
2.Your inquiry related to our products or prices will be replied in 24hours.
3.Well-trained and experienced staffs to answer all your enquires influent English.
4.Distributor ship is offered for your unique desigh and some our current models.
5.Protection of your sales area, ideas of design and all your private information.
FAQ:
1.Can you ship order to Canada or Australia ?
Yes,we can .We send orders worldwide .
2. What delivery method do you use ? and delivery time ?
We can ship by EMS,DHL,FedEx,UPS,TNT with tracking number. Usual delivery time is 4-7 workdays.
3. What is your payment term?
100% T/T payment before shipment.
4. How can I ask any other question ?
You can contact us online or leave us messages below.
|
|

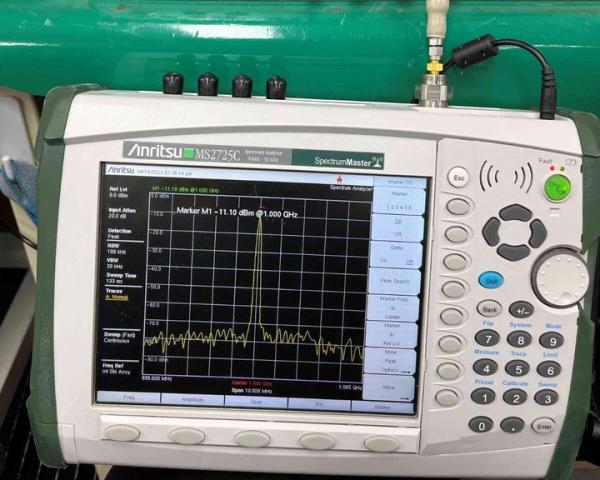

Anritsu MS2725C RF Spectrum Master Images
|
